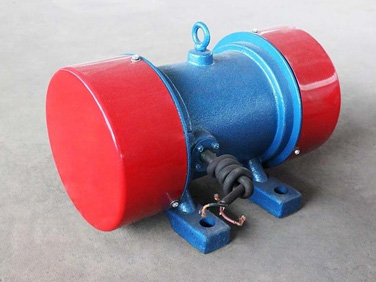

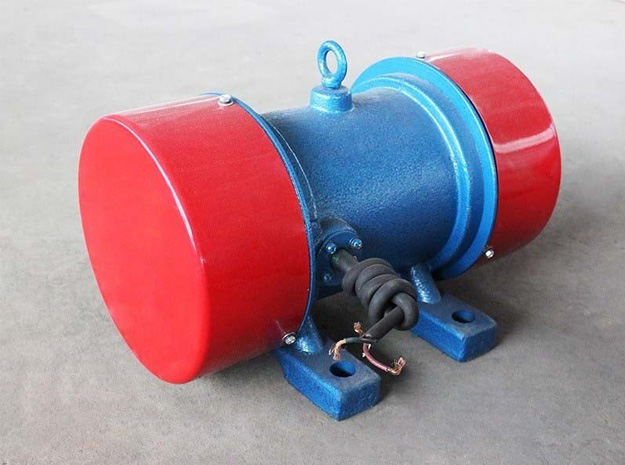

Vibration Motor

Model
XV1.5-2~XV7.5-6
Weight
19~370kg
Power
1.5~5.5kw
Exciting force
1.5/2.5/5/8/16/20/30/50/75kn
Rotating speed
3000/1500/1000rpm
Installation method
horizontally-mounted

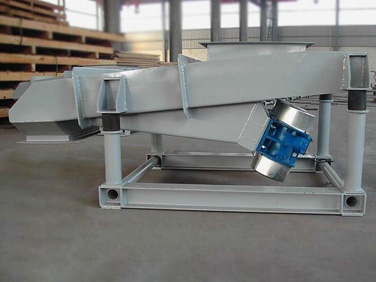

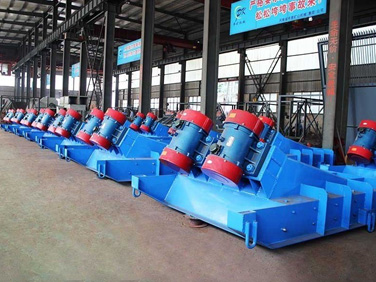

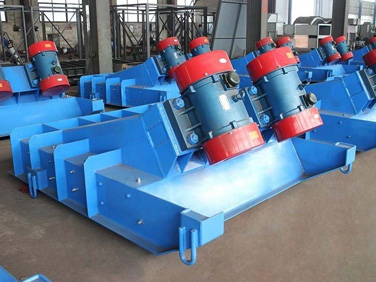

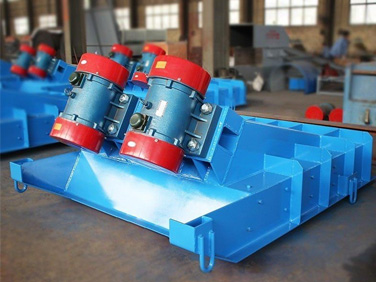

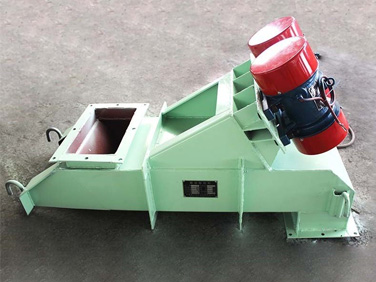

Vibration motor is equipped with a set of adjustable eccentric blocks at both ends of the rotor shaft,utilizing the centrifugal force generated by the high-speed rotation of the shaft and the eccentric block,thus the exciting force is obtained.It offer exciting vibration source for all kinds of vibrating machines such as vibrating screen, vibrating feeder, vibrating conveyor, vibrating flask shaker, vibrating crusher, vibrating molding machine, vibrating sand mixer, vibrating buffing machine, vibrating test-bed, etc.in power plant, building materials, grain, coal, mine, metallurgy, chemical industry, light industry, casting, railway, port and other industries. IP Grade IP (INGRESS PROTECTION) grade system is drafted by IEC (INTERNATIONAL ELECTROTECHNICAL COMMISSION ).IP grade is composed of two numbers, the first number represents for anti-invasion grade of external objects and dust, the second number shows the sealing degree of anti- invasion of moisture and water, if the number is greater, the degree of protection will be higher

01

Joint utilization of motors can be adopted to the synchronization of complete and different technological requirements

02

The exciting force direction can be changed according to the installation of vibration motor

03

Exciting force can be adjusted continuously by changing the angle of the eccentric block

04

Fully enclosed structure,dust-proof and water-proof,it can work under high requirement environment

05

Large vibration force, light body weight, small volume,low mechanical noise,stable vibrating frequency

06

Vibration frequency and amplitude can be customized according to different uses

07

Complete ranges of specification to meet the needs of various types of vibration machinery

The equipment that motor works with :______(vibrating feeder, vibrating screen, hopper wall vibrator,etc.)
Motor Power:_____kw
Insulation grade:_________
Protection level:_________
Explosion-proof is required or not:_________
Rotation speed:________rpm
Exciting force:_________KN
Working power supply: __V__HZ
