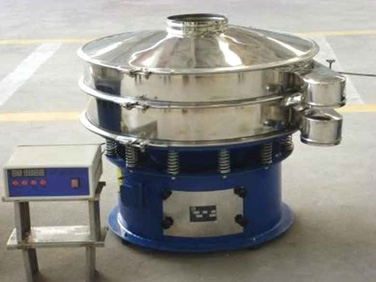

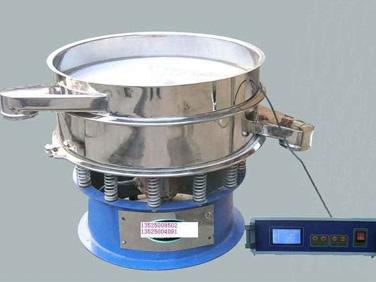

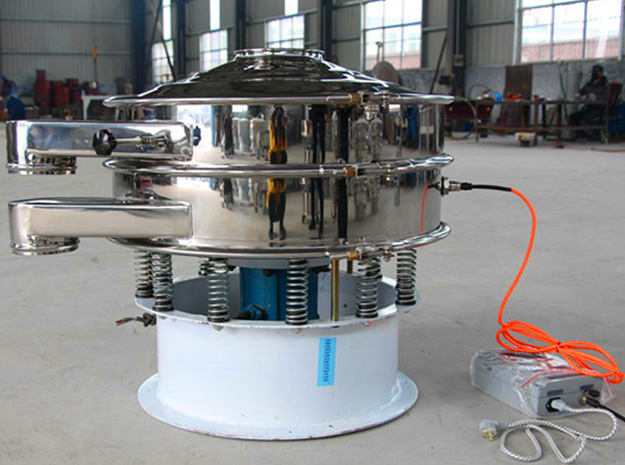

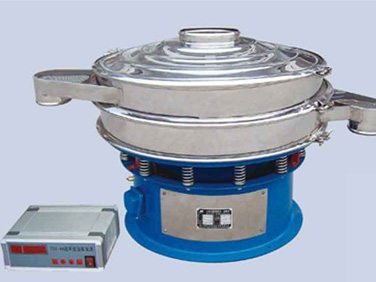

Ultrasonic vibrating screen is the rotary vibration screen installed ultrasonic system and it is a high-precision ultra fine powder screening machine. It is consist of upper cover, screen frame with ultrasonic, base, vertical motor and ultrasonic generator etc. Diameter can be ranged from 400mm to 2000mm and with single or multiple screening layers.Ultrasonic vibration screen solve a series of screening problems, including adsorption, reunite, static, precision, density, light weight and other screening problems, which makes the separation of ultra fine powder easier
Prolonged mesh life by reducing screen overload and frequency of mesh cleaning
More efficient sieving capacities which could ensure the quality of final product
Screen surface could achieve maximum utilization, maximizing the productivity
Easy to install and maintain
More efficient reducing the blockages for mesh
Without pollution to the material which produced by the bouncing ball
Resolve adhesive material and reduce the oversize screening material
One intelligent ultrasonic generator can applied for single or multiple layers

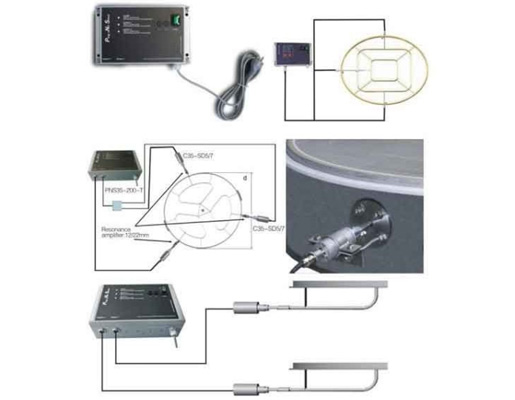

Ultrasonic vibrating screen can convert the 220V,50HZ or 110V,60HZ electric energy to 18KHZ high frequency electric energy, then, convert it to mechanical vibration of 18KHZ through ultrasonic generator and transmit to the screen mesh. The super-fine powder on the screen mesh will get greater ultrasonic acceleration and avoid a series of screen mesh blocking factors
Material to be processed: _____
Bulk Density: _____t/m3
Handling capacity: _____ t/h
Layer number: ______
Mesh size of each layer: _____mm _____mm _____mm
Working power supply: _____V ______HZ
