Belt bucket elevator

Model

TD

Max Lifting height

48m

Capacity

9-238m³/h

Bucket Width

160/250/315/400/500/630mm

Bucket Running Speed

1.4/1.6/1.8m/s

Traction Component

Conveyor belt

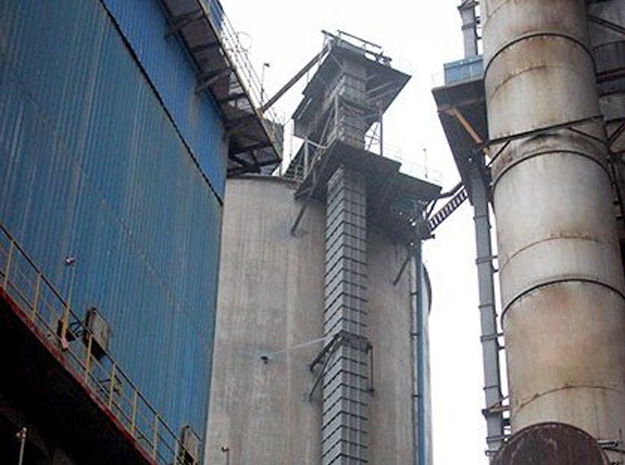

Belt bucket elevator is designed for transporting vertically for granular, powder and small block of grinding suction smaller dispersing shape material. It adopts belt as the traction component ,can reach to max.40 meters . Capacity could be approx. 4~238m3/h. The vertical belt bucket elevator is widely used in mining , metallurgy , chemicals , power plant ,agriculture and quarry industries, etc

01

Without impact caused due to traction member

02

Safe belt-joining by clamping in a cast compound box

03

Greater conveying speed due to smooth transmission

04

Return idle drum is squirrel cage to prevent belt damage from material falling between the belt and drum

05

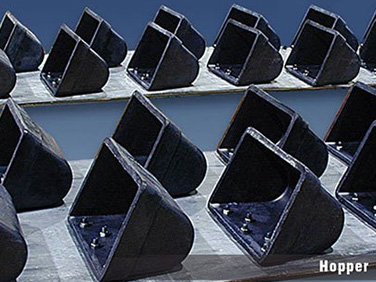

The belt allows you to optimise the bucket spacing to achieve the required capacity without changing the speed or the bucket

06

With an integrated return stop system, an electronic speed detector and electronic off-track detector for the belt to keep safety

07

Ranges from low to high conveying capacities, can be up to 1740 m3/h

08

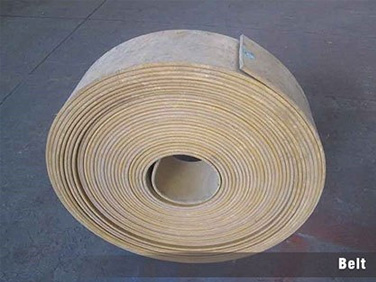

Adopt specialized belt for bucket elevator

Material to be lifted: _____
Bulk Density: _____t/m3
Feedingcapacity: _____t/h
Elevator Lifting height _______m
Average size of feeding material:____mm
Max. size of feeding material: ____mm
Working power supply: _____V ______HZ
